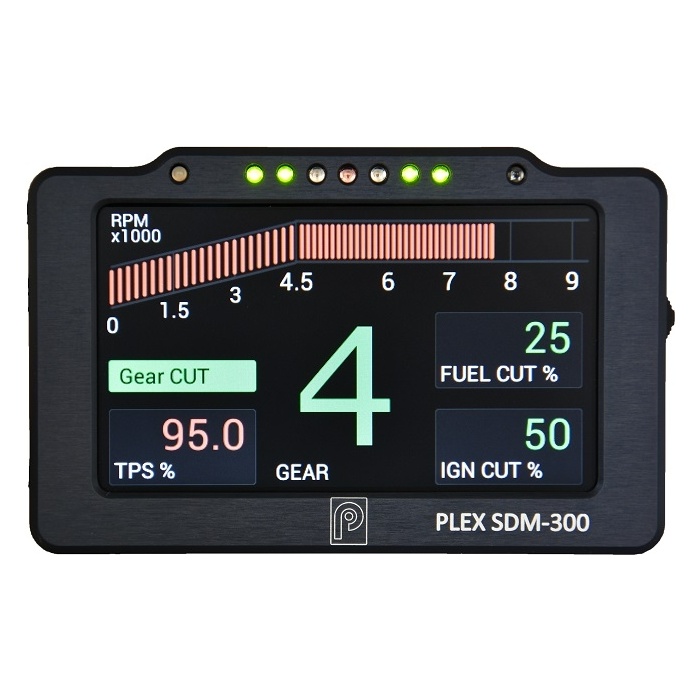

Plex SDM-300

Entry-level, motorsport quality dash display with vivid 4.3”display.

Comes with fully configurable CAN BUS, preloaded Smart Alarms, Auto-display Page Changing, a permanent Engine Log and 1-click Max. and Min. values function and the capability to display as many as 256 different ECU channels.

Compatible with most after-market ECUs and with OBDII.

Uniquely shallow total installation depth of just 19mm makes the the SDM-300® suitable also for OEM dashboards. Without any protruding wires and connectors from the back side, installation is quick and requires minimum effort.

What’s in the Box :

• Display
• Tyco Spec44 wiring loom
• 3M Velcro Tape
• Mounting Screws

Available Product Versions :

• Basic
• Version with I/Os (2x multi-purpose inputs plus 2x aux. outputs)

Key Features :

• 4.3” High-brightness Anti reflective TFT display
• QuickGlance™ UI
• Automatic display page changing
• 20 Preloaded Smart Alarms
• Custom CAN BUS
• Display of up to 256 ECU
• 2x digital/analog inputs (optional)
• 2x aux outputs (optional)
• Multiple display page layouts
• 4x different colour themes
• Permanent Engine Log
• 1-Click Min. & Max. Values function
• Math Channels and more

Compatibility :

Compatible with most after Market ECUs and with EURO OBDII (ISO15765)

PC Software :

Free Device Manager SW bundled with the product.

• Quick & easy device configuration
• Firmware upgrades/updates via USB
• Engine log review
• Custom CAN Bus configuration
• Math Channels

Technical Spec :

• Operating Voltage: 6 – 18V DC
• Operating Temp: -10 to +60 deg C
• Dimensions: w 123mm, h 90mm, d 19mm
• Weight: 270g
