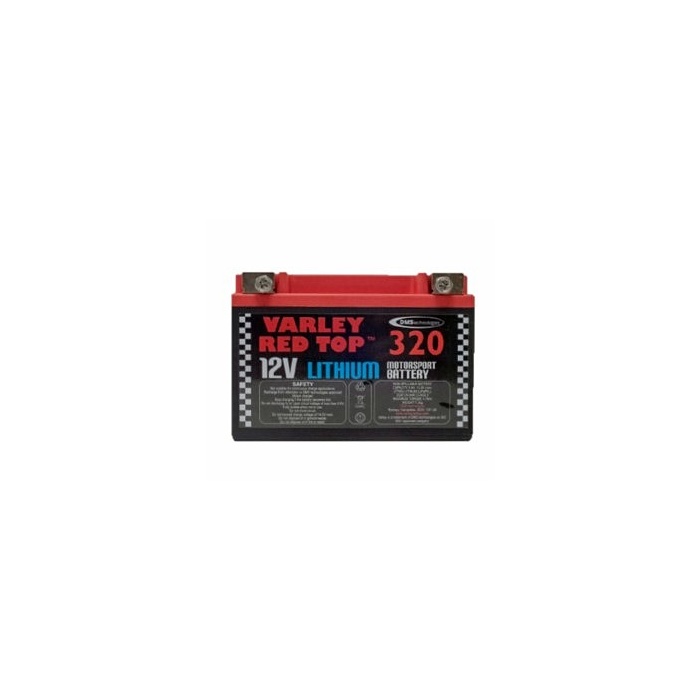

Varley Red Top 320 12v Lithium Motorsport Battery

Varley Red Top 320 12v Lithium Motorsport Battery

This Varley Red Top 320 lithium motorsport battery is an engine start battery capable of the exceptional engine cranking ability expected from the Varley brand. The battery utilises LiFePO4 (lithium iron phosphate) technology, which is widely regarded to be one of the safest and longest lasting forms of lithium-ion battery available. The combination of innovative design and cutting-edge engineering techniques enable the battery to deliver such impressive performance safely, reliably and in an extremely lightweight package.

Benefits:

• Superior Resistance to Shock & Vibration
• Significant Weight Saving
• High Power Density
• Long Storage Life
• UK Technical Support
• Fast Recharge
• Tested to UN38.3 Transportation Regulations
• 6A & 2A Chargers Available
• Voltage Check LED Display T

Technical Specifications:

• Voltage* Min. 10.0V - Typ. 12.8V - Max. 14.6V
• Continuous Discharge Current* - 80A Max
• Peak Discharge Current ** - 320A Max
• Capacity* - 6Ah (77Wh)
• Charge Voltage* - Min 14.4V - Max 14.6V
• Approved Lithium Charger Current - Typ. 7.5A - Max 20A
• Low Voltage Cut Off 9.5V
• Over voltage protection - Max 15.6V
• Operating Temperature (Discharge) Min -20°C - Max +60°C
• Operating Temperature (Recharge) Min 0°C - Max +60°C
• Storage Temperature Min -20°C - Max +60°C
• Weight 1.3kg
• Dimension (W x D x H) 87mm x 150mm x 105mm
• Terminal Thread M6 (Female)

*Values provided above are based on tests conducted at +23°C

**CCA tested at -18°C after battery has been per-conditioned
